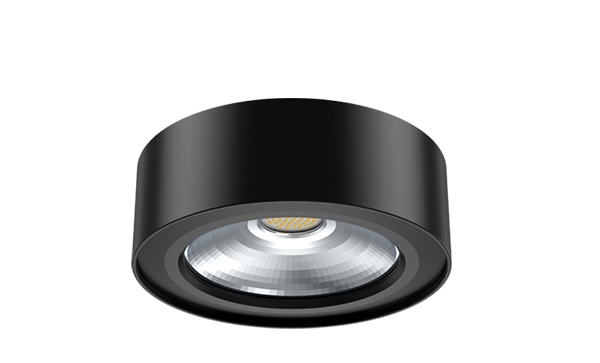

Roller 11W~34W downlight
Share Product:
Features
• Lifespan L70B10: 100.000 hr
• Surface or suspended mounting
• Slope angle of the housing can range from 0° to 45°, on special request, it is possible to change the angle individually
• Available in three diameters
• DALI dimming optional
• Standard color: white or black, any RAL color possible on demand
• Powder coated aluminum body
• Protection Class: I
• Environment friendly: no mercury or toxic gasses
• Instant switch-on regardless of temperature or humidity
• Warranty: 5 years
Specifications
| Roller downlight | Small | Medium | Large | |
| Power | 11W | 15W | 22W | 34W |
| Luminous intensity | 1000lm | 1500lm | 2100lm | 3000lm |
| Color rendering index | CRI > 85/90 | |||
| Color temperature | 4000K | |||
| Beam angle | 78° SUPER DIFFUSION (sD) | |||
| Dimmable | yes, with DALI | |||
| Power factor (Pf) | >=0.99 | |||
| Input Voltage | 220-240V / 50 Hz | |||
| Operating Temperature | 0°C~+35°C | |||
| Ambient humidity | 20~80% | |||
| Dimension (ØxH)[mm] | 158×80 | 218×80 | 238×80 | |
| Weight[kg] | 1.3 | 2.0 | 2.3 | |
Applications

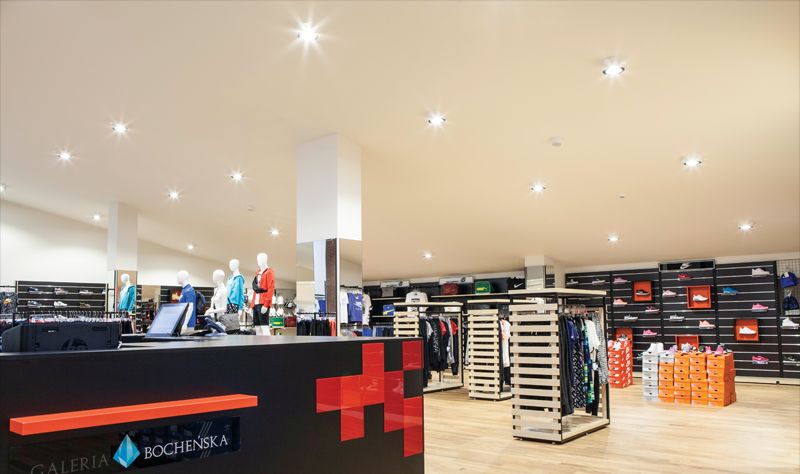

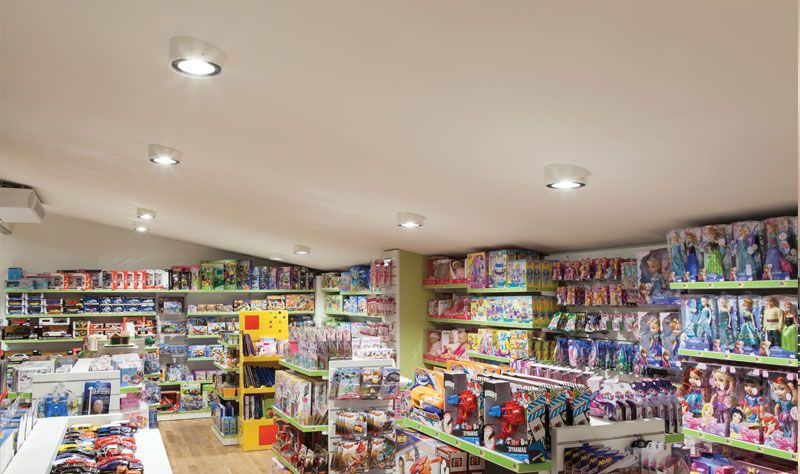

• Commercial buildings, offices, conference rooms, hotels, restaurant, public utility buildings, corridors, …
Downloads
• IES File on demand
• Productsheet
