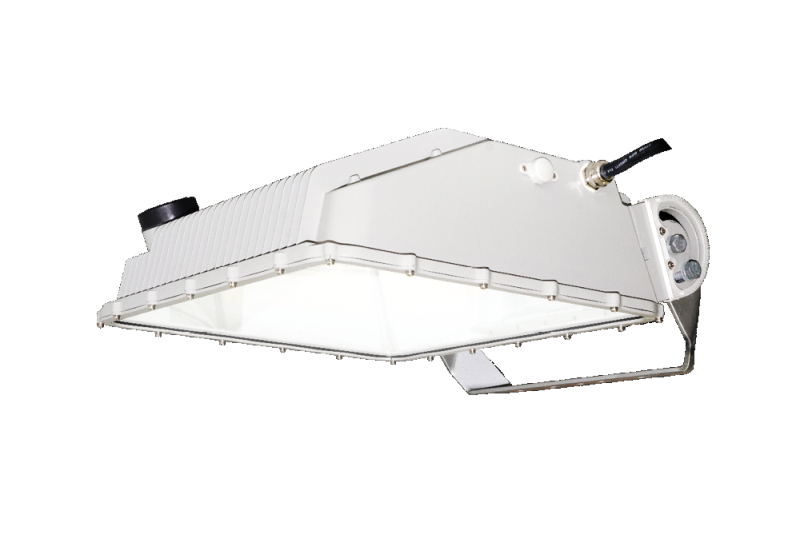

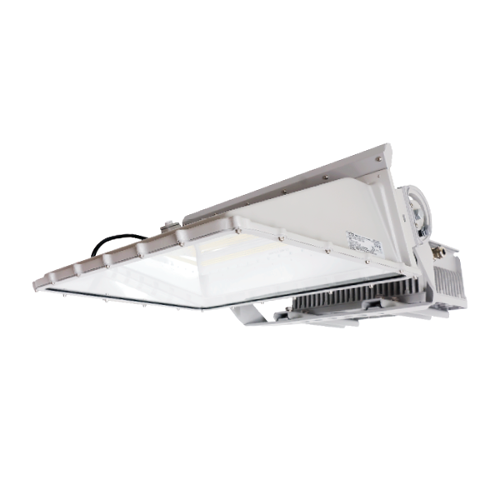

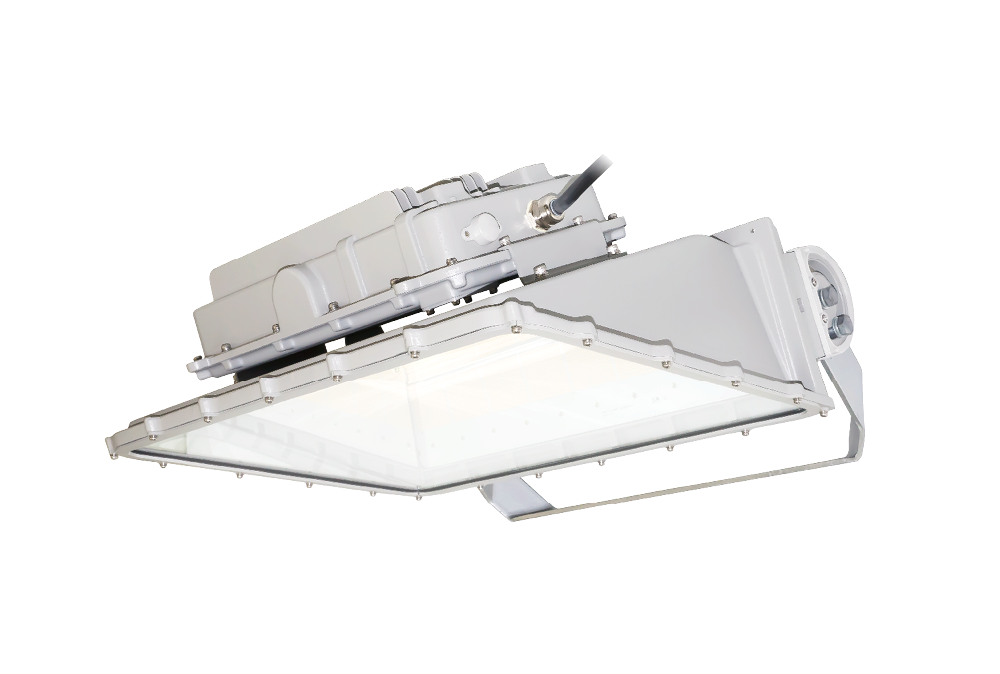

MAHA plus lightweight asymmetrical area flood light 150lm/W

Share Product:

Features

• Lifespan L80B10:> 60.000 hr
• IP class: 66
• Protection against mechanical impacts: IK08

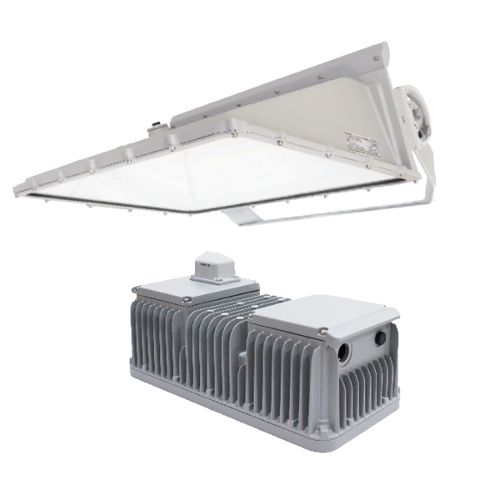

• Boosted installation efficiency thanks to the external driver
• Unrivaled Efficacy: 150 Lm per watt
• Linkage with wired(RS485), wireless (zigbee) control system and NEMA-7
• Asymmetric wide light distribution
• Tilting structure for optimized aiming (upward:90°, downward: 90°)
• Cast aluminum body and tempered glass 4T (Clear) and powder coating finish
• Advanced reflector technology – low glare output
• Outstanding cooling technology and durability
• Can send uniform light distribution even at long distance
• Warranty: 5 years (12 hours per day)

Specifications

MAP
Power	200W	250W	400W	500W	600W	800W
Luminous intensity	30.000lm 150lm/W	37.500lm 150lm/W	60.000lm 150lm/W		75.000lm 150lm/w	90.000lm	96.000lm 120lm/W

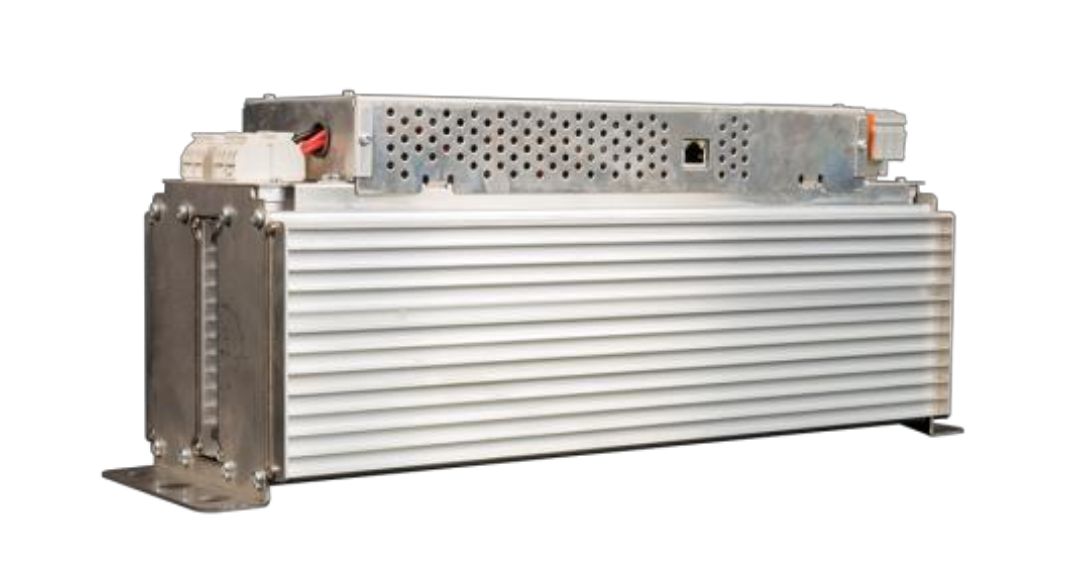

Driver	internal	internal	internal or external		external	internal	internal/external
Color rendering index	RA > 80						RA > 70
Color temperature	5000K (3000K, 4000K available)
Temperature in use	-30°C ~ 53°C
Dimensions	347/437/198mm		457/551/160.5mm (internal) 475/529/161mm (external)		475/529/161mm		620x767x275mm (internal) 620/543/275mm (external)
Weight	7.5kg		15kg (internal) 11.3kg (external)		11.3kg	20kg	15.2kg external / 25.2kg internal

Applications

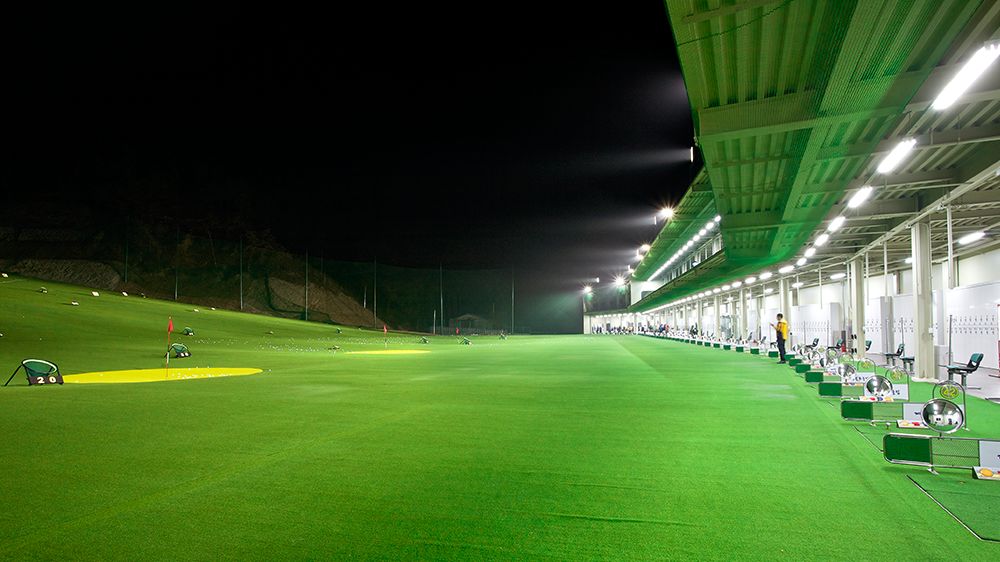

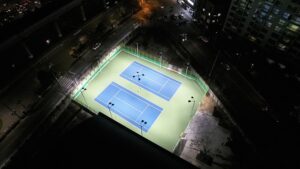

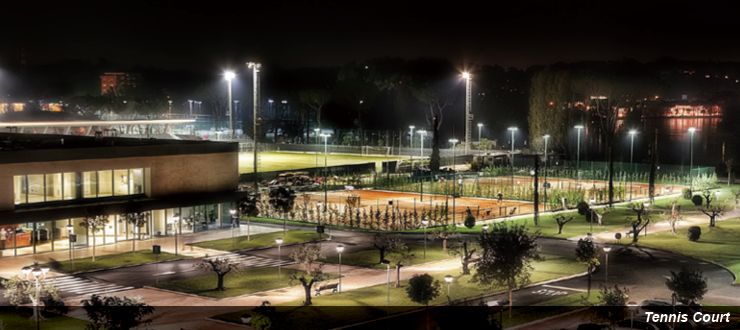

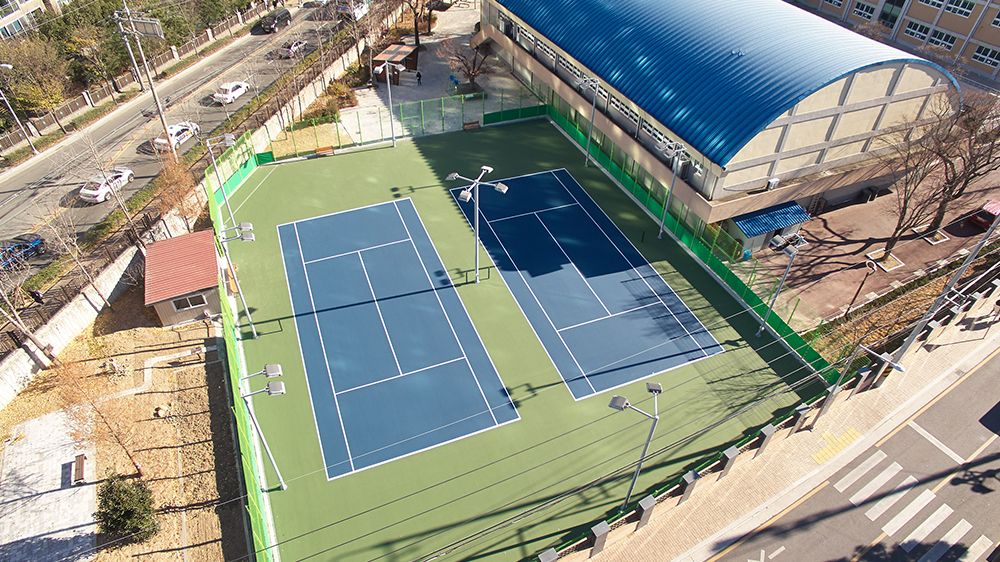

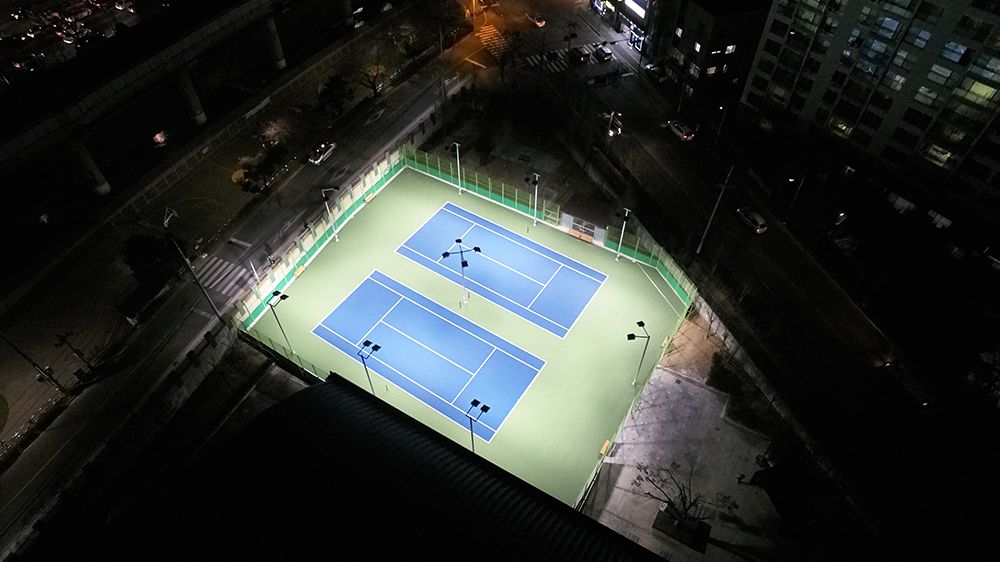

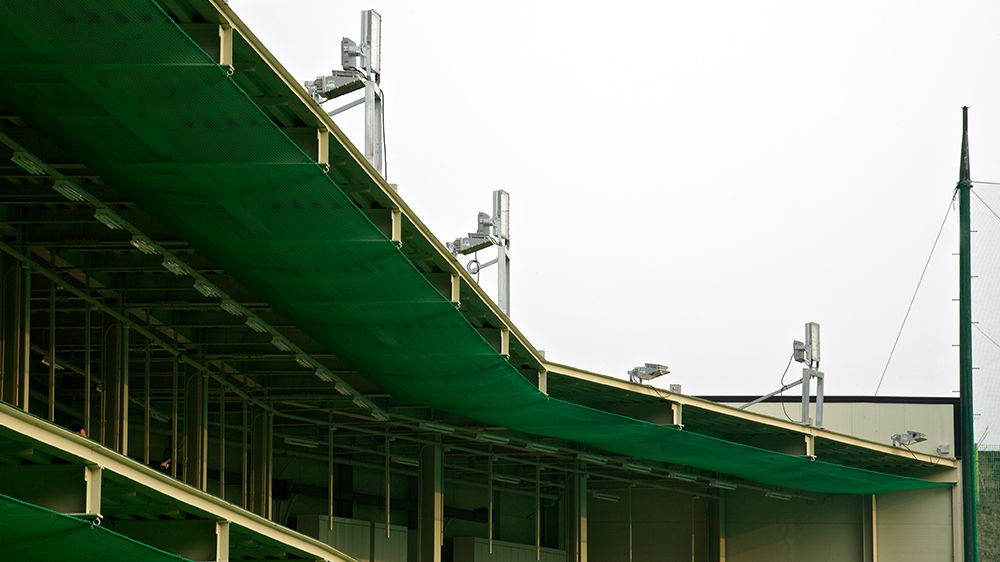

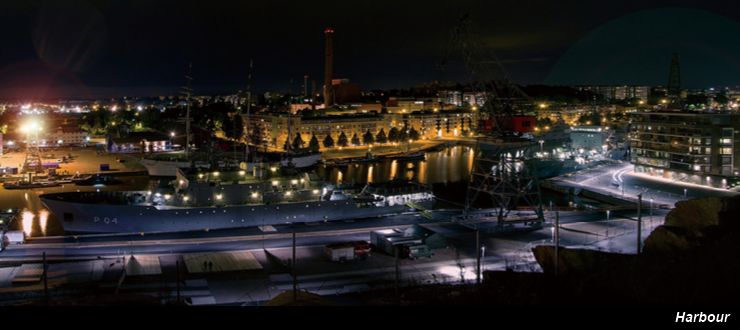

• Car parks, bulkhead lighting, walkway, sports arena – indoor and outdoor, football stadia, tennis courts, high mast, airports, food and beverage, healthcare, education, manufacturing, goods handling, pharmaceutical, power plants, ports and terminals, warehousing and cold storage, transport (rail, road and air), MOD and military, surface mining, water and waste treatment …

Downloads

• IES File on demand
• Product Sheet
