Linear eco lighting fixture

Share Product:

Features

• Lifespan L80B50%: > 80.000 hr
• Individual or “in-line” luminaires (max 16A)
• 4000K with CRI>80
• MacAdam 3 SDCM

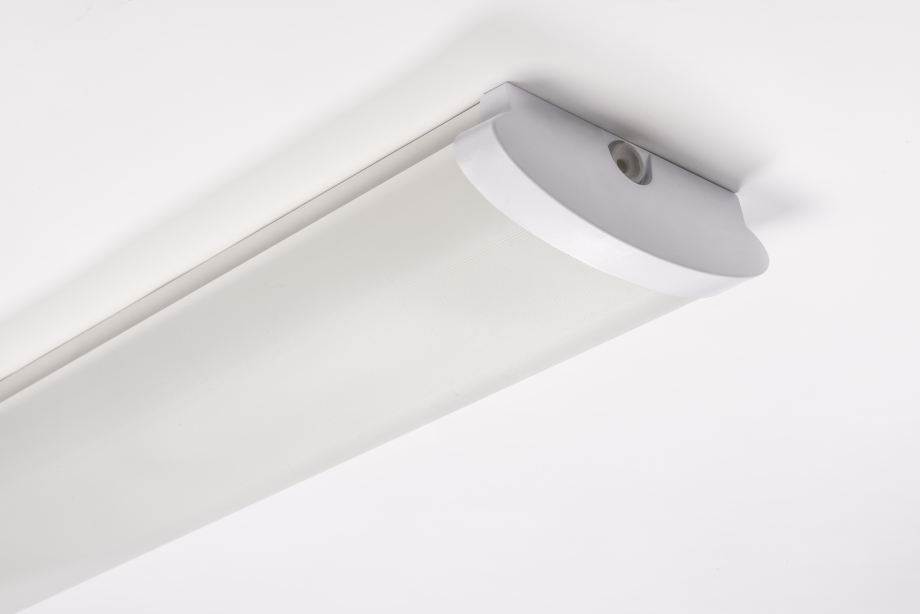

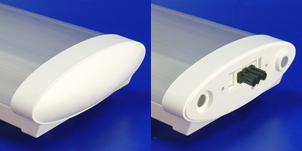

• Fitting consists of a white metal back plate, a plastic extruded frosted diffuser and standard white plastic injected endcaps
• Cover guarantees an efficient direct/indirect light

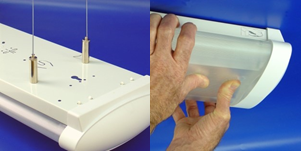

• Plastic diffuser is snap-in mounted an the metal backplate and is easy ro remove without tools. • Material: PMMA (frosted)
• IP class: 44
• Lumen efficiency: 135lm/w
• Environment friendly: no mercury or toxic gasses
• Immediate start regardless of temperature or humidity
• Equal light distribution and high uniformity
• Optional DALI, MOTION DETECTION, EMERGENCY module, adjustable cable suspension, versione for LED tubes
• Warranty: 5 years

Specifications

Eco Linear lighting fixture 120cm 150cm
Power 25W 34W 33W 45W
Luminous intensity 3100lm 4600lm 4120lm 6090lm

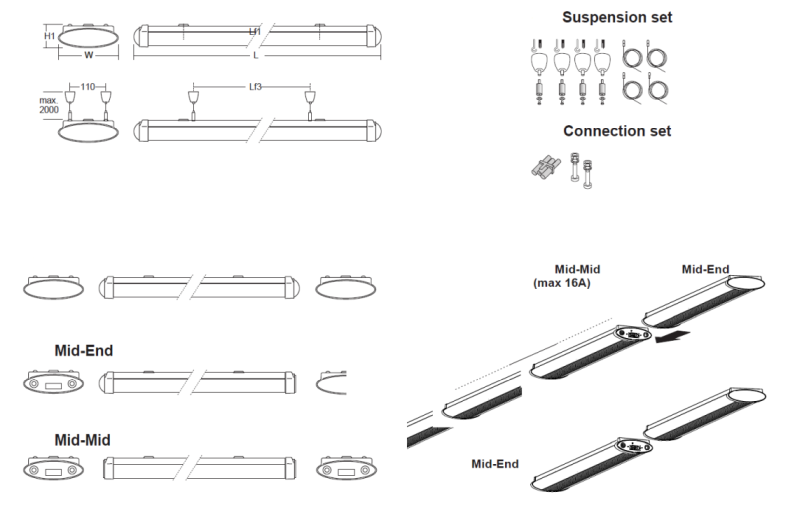

Dimensions[LxWxH](mm) 1293x208x77 1550x208x77
Color temperature 4000K (3000K, 6500K available)
Color rendering index RA > 80
Input Voltage 220-240V/50-60Hz

Applications

•Office, hospital, hotel, supermarket, library, parking, corridors, …

Downloads

• IES File on demand
• Product Sheet Product Sheet LED plug&play linear fixture IP44
